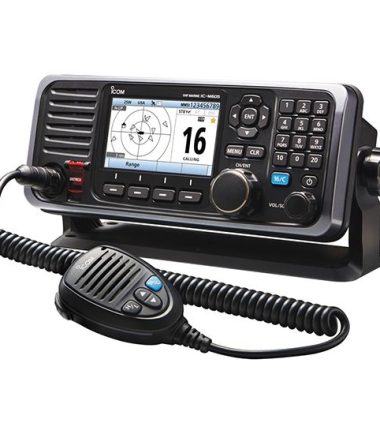

ICOM GM600 VHF 900.00

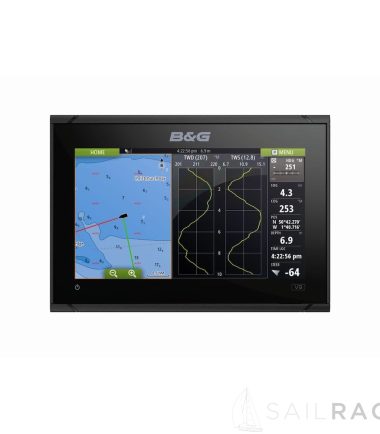

B&G Vulcan 9 FS GPS Chartplotter Display 9" 000-13214-001 910.00

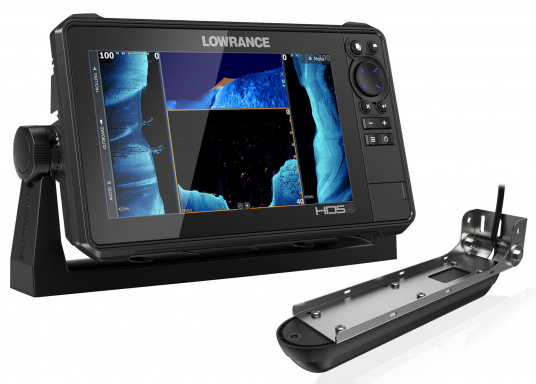

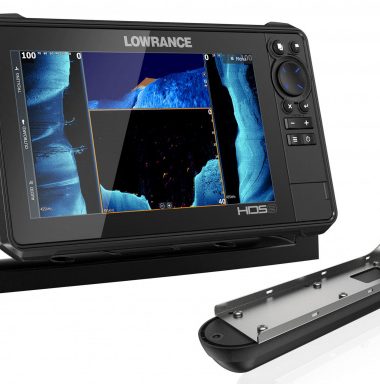

Codice:Lowrance HDS 9 Live Row 3 in 1





Cartografia inclusa
C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
Luminosità dello schermo
>1200 Nits
Frequenza aggiornamento
10 Hz
Vibrazioni urti
100,000 cycles of 20 G
Tensione di alimentazione
12 v DC (10.8-17VDC)
Sicurezza bussola
Risoluzione del display
1280 x 800
Canali del ricevitore GPS
Connettività NMEA 2000
1x Micro-C
Memoria scheda SD
2 micro SD cards up to 32GB
Porte Ethernet
2 x 100 Mbit, 6 max MFD’s on a network
Periodo di garanzia
2 Year 3 additional years ofupgrade optionsTotaling 5 years
Consumo energetico minimo
2.3A @ 13VDC with Full Backlight, Sonar on
Consumo energetico tipico
2.3A @ 13VDC withwith Full Backlight, Sonar on
Precisione della posizione
20m RMS
Consumo energetico massimo
3.6A @ 13VDC with Full Backlight, Sonar on
Waypoint, rotte, tracce
3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Tempo prima riparazione
Intervallo temperatura di stoccaggio
4°F to 140°F (-20°C to 60°C )
Compatibilità radar
4G (Broadband)3G (Broadband)Halo24 (Pulse Compression Dome Radar)Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
Intervallo di temperature operative
5°F to 131°F (-15°C to 55°C )
Valore nominale del fusibile consigliato
6.5lb (2.95kg)
60°C, 95% relative humidity (RH) for 18 hours
Memoria interna
8.0 GB Internal
Angoli visuale
80° top/bottom, 80° left/right
AIS Chart and Radar overlay. Target vessel details.
Carte supportate
C-MAP (MAX N, MAX N )C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV Platinum )Insight (Pro and HD)Lowrance Regional Mapping Partners
Modalità di governo
CourseHeadingWaypointPower Steer
Schemi di virata manovra
CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
Commutazione digitale
Conformità approvazioni
FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Tipo di montaggio
Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
Integrated Bluetooth 4.0 with support for Bluetooth Classic
Compatibilità sonar
Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructureScan3D
Connettività Wi-Fi elemento
Internal 802.11b/g/n and Compatible with WiFi-1 Module
Livello d’impermeabilità
IPX7 with card door closed
Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
Connettività PC
Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Output:NoInput:HDMIComposite video RCA – singlechannel via optional adaptor
Colore retroilluminazione
Pure White LED
Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
SiriusXM via WM-3 (USA only)
SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom /-ExitEnterMenuWaypointPower/Light4 – User Programmable Quick Access Keys
Sentenze NMEA 0183 supportate
TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.

Trasduttore 3 in 1 incluso
